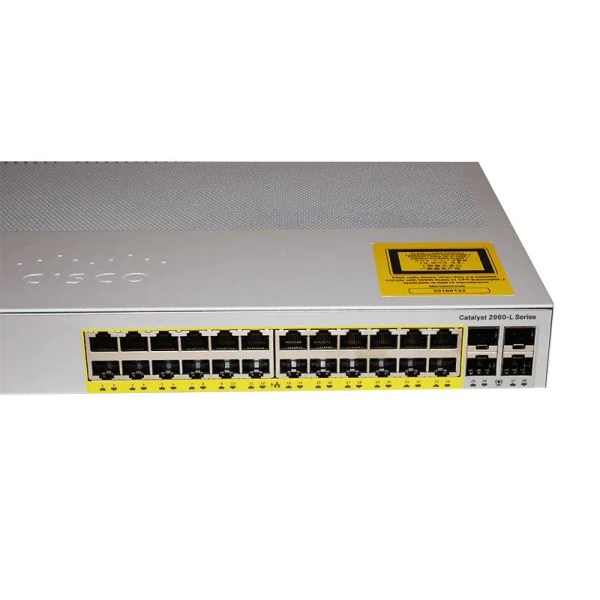

WS-C2960L-24PS-LL, Cisco Catalyst 2960L Switch, 24xGigE PoE/4x1G SFP/LAN Lite

$1,964
The Cisco WS-C2960L-24PS-LL is a powerful switch designed for businesses in need of high-performance networking. This Catalyst 2960L model offers 24 Gigabit Ethernet ports with PoE capability, allowing for easy connectivity and power supply to devices. With 4 1G SFP ports and LAN Lite software, this switch ensures reliable and secure network operations. It is the perfect choice for businesses in the Asia Pacific region, with the specific part number WS-C2960L-24PS-AP.

Product Features

  • ● Cisco Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class.
  • ● Port Capacity: 24x 10/100/1000 PoE+ ports with 195W power budget and 4x 1G SFP ports, LAN Lite
  • ● Layer 2 Switching with Switching Capacity 56Gbps and  Forwarding Rate 41.67Mpps
  • ● Stacking Bandwich 56Gbps and Energy-efficient technology
  • ● Compact design suitable for various environments

Product Applications

  • ● Ideal for medium to High-sized businesses looking to power IP phones, cameras, and access points.
  • ● Suitable for  Medium or High Level Network institutions needing robust and reliable network infrastructure.
  • ● Perfect for retail environments requiring stable networking solutions for POS systems and surveillance.

Product Features Comparison

Brand Cisco Cisco Cisco Cisco
Port Configuration 24 x Gigabit Ethernet POE+ ports 48 x 10/100/1000 (PoE+) + 4 x 10G SFP+ 48 × 10/100/1000BASE-T (RJ45), 4 × 1G SFP 48 x 10/100 Ethernet, 2 SFP and 2 1000BASE-T
Switching Capacity n/a 176Gbps 96 Gbps 16 Gbps
Forwarding Rate n/a 130.95Mpps 72 Mpps 13.1 Mpps
PoE Budget 195W 390W Not supported (non-PoE model) 370 W (24 ports up to 15.4 W)
Stacking Capability n/a Maximum Stacking Number: 9 n/a n/a



WS-C2960L-24PS-LL Specifications

10/100/1000 Ethernet ports 24
Uplink interfaces 4 SFP
Available PoE power 195W
Fanless Y
Dimensions (H x D x W) 1.73 x 10.45 x 17.5 in.

(4.4 x 26.5 x 44.5 cm)

Weight 7.41 lb (3.36kg)
RJ45 Ethernet 1
USB mini-B 1
USB-A port for storage and Bluetooth console 1
CPU ARMv7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Forwarding bandwidth 1G: 28 Gbps

10G: 64 Gbps

Switching bandwidth 1G: 56 Gbps

10G: 128 Gbps

Jumbo Ethernet frame 10,240 bytes
MTBF in hours (data) 2,412,947
MTBF in hours (PoE) 909,838
Operating temperature 23ºF to 104ºF
(–5ºC to 40ºC)
Operating altitude 10,000 ft (3000 m)
Operating relative humidity 5% to 90% at 40ºC
Storage temperature –13º to 158ºF
(–25º to 70ºC)
Storage altitude 15,000 ft (4500 m)
Storage relative humidity 5% to 95% at 65ºC
Voltage (auto ranging) 110 to 220V AC in
Frequency 50 to 60 Hz
Current 0.21A to 0.26A
Power rating
(maximum consumption)
Data: 0.06 kVA

PoE: 0.24 kVA

Optional Add-ons

Model Number Description
GLC-LH-SMD Cisco 1G SFP LC long‑reach module for fiber uplink connectivity
GLC-SX-MMD Cisco 1G SFP LC short‑reach multimode module for aggregation links
CAB-AC Cisco AC power cord for Catalyst fixed-configuration switches
