Lenovo ThinkEdge SE350 V2, 1x Intel® Xeon® 16 cores, max 256GB DDR4, max 12TB SAS

$0
The ThinkEdge SE350 V2 is the latest storage optimized workhorse for the Edge. Designed and built with the unique requirements for Edge servers in mind, it is versatile enough to stretch the limitations of server locations, providing industrial networking connectivity and security options and easily managed with Lenovo XClarity Controller. The ThinkEdge SE350 V2 is a rugged, compact-sized Edge solution with a focus on smart connectivity, business security, and manageability for the harsh environment.
The ThinkEdge SE350 V2 is an Intel® Xeon-D® processor-based server, with a 1U height, half width and short depth case that can go anywhere. Mount it on a wall, ceiling or install it in a rack. This rugged Edge server can handle anything from 0-55°C as well as full performance in high-dust and vibration environments.

Lenovo ThinkEdge SE350 V2

Product Features

  • Compact form factor for space-constrained environments
  • ThinkShield lifecycle security, physical tamper protection, and key encrypted storage
  • Full remote manageability – Cloud-based ThinkShield Key Vault Portal
  • Easy connectivity with 1G or 10G/25G wired and 2.5G TSN networking supported
  • Suitable for harsh environments with extended temperature range, high shock, and vibration tolerance



Specification (Customizeable)

ThinkEdge SE350-V2 Specifications
Brand
  • Lenovo
Model
  • SE350 V2
Processor
  • 1-socket Intel® Xeon® D-2700, up to 16 cores
Memory
  • Up to 256GB in 4x slots, using 64GB DIMMs; 3200MHz TruDDR4
Internal Storage option
  • 2x M.2 2280 SATA boot drives + 4x 2.5″ 7mm HS NVMe/SATA data storage drives
  • 2x M.2 2280 NVMe boot drives + 2x 2.5″ 15mm HS NVMe/SATA data storage drives
  • SED, high temperature, high capacity, and high endurance drive options
  • Optional encryption key deletion on tamper or theft detection
I/O Expantions ·

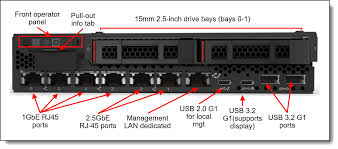

    • Front: 2x USB 3.0 (Type-A) + 1x BMC USB 2.0 (Type-C), 1x Display USB-C (USB 2.0 + Display Port (video) / USB3.2 Gen 1 auto switch), 1x BMC serial RJ45 management port
    • Rear: 1x RJ45 Console Serial Port (can be disabled)
Power Supply
  • Dual-redundant external power supplies 300W 115V/230V AC
  • Dual DC supply: 12V-48VDC
  • Single internal AC power supply: 500W
Form Factor
  • 1U height, half width edge server; Height: 41.7mm, Width: 209mm, Depth: 384mm
RAID Support
  • RAID 0,1 for boot drives
  • RAID 0, 1, 5, 10 for data drives
Network Interface
  • 4x 10GbE/25GbE SFP+/SFP28
  • 2x 2.5GbE TSN
  • 1GbE RJ45 management port; or
  • 4x 1GbE
  • 2x 2.5GbE TSN
  • 1GbE RJ45 management port
High Availability
  • PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
Security
  • ThinkShield Key Vault secure management with motion and intrusion tamper protection
  • Optional Key Vault SED encrypted storage for boot and data drives
  • Lenovo Trusted Supplier Program, Secure boot, and Smart USB Protections
  • Optional Kensington keyed lock compatible chassis
  • Nationz TPM 2.0 for customers in China
  • Cable locking bezel
I/O Support
  • Front: 2x USB 3.0 (Type-A) + 1x BMC USB 2.0 (Type-C), 1x Display USB-C (USB 2.0 + Display Port (video) / USB3.2 Gen 1 auto switch), 1x BMC serial RJ45 management port
  • Rear: 1x RJ45 Console Serial Port (can be disabled)
Accelerators and PCIe Expansion
  • 1x PCIe 3.0 x16 75W or 4x M.2 22110
  • Support for 1x NVIDIA® T4 GPU for AI inference
  • Support for GPU, FGPA, ASIC accelerators
  • Support for operational technology networks
  • 1x PCIe network card expansion

a. 4x 1GbE RJ45 PCIe

b. 2x10GBASE-T PCIe

Management
  • Lenovo XClarity Administrator with mobile option
OS Support
  • Microsoft Windows Server, SLES, Ubuntu, RHEL, VMware ESXi, vSAN. Visit lenovopress.com/osig for more information
Operating Temperature
  • 0°C to 55°C
Warranty
  • 1- and 3-year customer replaceable unit and onsite service, next business day 9×5, optional service upgrades
Datasheet Lenovopress.com/ds0180
