| ThinkEdge SE350 Specifications |
| Brand |
|
| Model |
|
| Processor |
- 1-socket Intel® Xeon® D-2100, up to 16 cores
|
| Memory |
- Up to 256GB in 4x slots, using 64GB DIMMs; 2133/2400/2666MHz TruDDR4
|
| Internal Storage option |
- 2x M.2 2280 SATA boot drives + 8x M.2 22110 NVMe data storage drives
- 2x M.2 2280 SATA boot drives + 4x M.2 22110 NVMe/SATA data storage drives
- SED, high temperature, high capacity, and high endurance drive options
- Optional encryption key deletion on tamper or theft detection
|
| I/O Expantions |
·
-

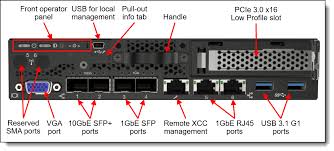

- Front: 1x VGA, 2x USB 3.0, 1x XClarity Controller management mini-USB
- Rear: 1x RJ45 Console Serial, 2x USB 2.0
- USB and Console ports can be disabled
|
| Power Supply |
- Dual-redundant external power supplies 100-240V AC
- Single DC supply: -48VDC (-40VDC to -72VDC) @ 8.4A
|
| Form Factor |
- 1U height, half width edge server; Height: 40mm, Width: 215mm, Depth: 376mm
|
| RAID Support |
- Software RAID available
- Hardware RAID 0/1 for M.2 SATA Boot SSDs
- Hardware RAID 0/1 for M.2 SATA Storage SSDs
|
| Network Interface |
- 2x10GbE (SFP+), 2x 10/100MB/1GbE, 2x 1GbE management
- 2x10GbE (SFP+), 4x switch 10/100MB/1GbE, 1GbE management
- 2x10GbE, 2x 10/100MB/1GbE, 2x 1GbE management
|
| High Availability |
- PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
|
| Security |
- ThinkShield Key Vault secure management with motion and intrusion tamper protection
- Optional Key Vault SED encrypted storage for boot and data drives
- Lenovo Trusted Supplier Program, Secure boot, and Smart USB Protections, Lenovo Wi-Fi Security, Lenovo LTE Security
- Optional Kensington keyed lock compatible chassis
- Nationz TPM 2.0 for customers in China
- Cable locking bezel
|
| HBA/RAID Support |
- Support for ThinkSystem PCIe RAID/HBA cards
|
| Accelerators and PCIe Expansion |
- 1x PCIe 3.0 x16 75W or 4x M.2 22110
- Support for 1x NVIDIA® T4 GPU for AI inference
- Support for GPU, FGPA, ASIC accelerators
- Support for operational technology networks
- 1x PCIe network card expansion
a. 4x 1GbE RJ45 PCIe
b. 2x10GBASE-T PCIe |
| Management |
- Lenovo XClarity Administrator with mobile option
|
| OS Support |
- Microsoft Windows Server, SLES, Ubuntu, RHEL, VMware ESXi, vSAN. Visit lenovopress.com/osig for more information
|
| Operating Temperature |
|
| Warranty |
- 1- and 3-year customer replaceable unit and onsite service, next business day 9×5, optional service upgrades
|
| Datasheet |
Lenovopress.com/ds0180 |
