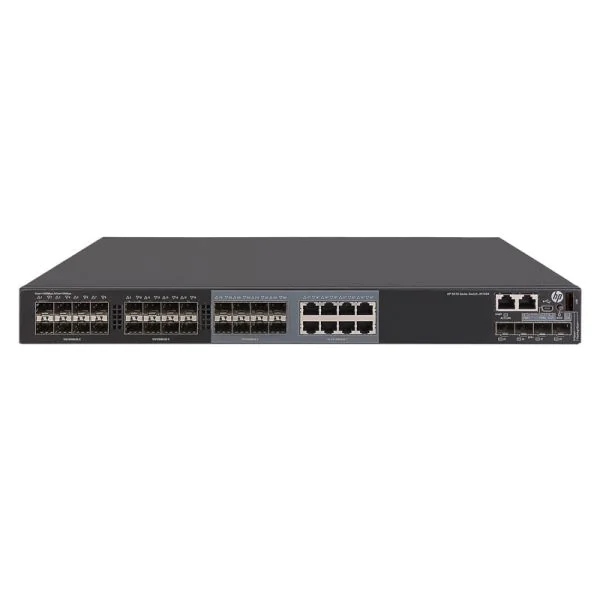

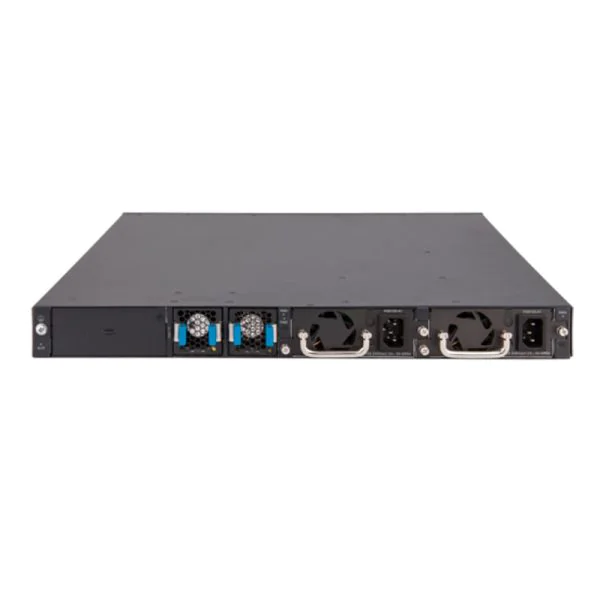

JH149A, HPE 5510 Switch, 24xSFP/4xSFP+
$7,728
JH149A Specifications |
|
|
System specifications |
|
| Type | HPE FlexNetwork 5510 24G SFP 4SFP+ HI 1-slot Switch |
| I/O ports and slots | · 16 fixed Gigabit Ethernet SFP ports; Ports 1 – 8 support MACSec 8 Combo GbE (SFP and RJ45) dual-personality 1000 Mbps port, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 4 SFP+ 10GbE ports · 1 port expansion module slot · Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module |
| Additional ports and slots | · 1 dual-personality (RJ-45 or USB micro-B) serial console port
· 1 RJ-45 out-of-band management port · 1 USB 2.0 |
|
Performance |
|
| 1000 Mb Latency | < 5 μs |
| 10 Gbps Latency | < 3 μs |
| Throughput | up to 214 Mp/s |
| Routing/Switching capacity | 288 Gb/s |
| Routing table size | IPv4 : 32768 entries
IPv6 : 16384 entries |
| MAC address table size | 32768 entries |
| Physical specifications | |
| Dimensions (W x D x H) | 44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in) |
| Weight | 7.5 kg (16.53 lb) |
|
Electrical specifications |
|
| Frequency | 50/60 Hz |
| Maximum heat dissipation | 409 BTU/hr (431.49 kJ/hr), Heat dissipation ranges from 163 BTU/hr to 498 BTU/hr, depending on power supply configuration |
| Voltage | 100 – 240 V ac, rated (90 – 264 Vac, max)
-48 to -60 V dc, rated (-36 to -72 V dc, max) (depending on power supply chosen) |
| Maximum power rating | 120 W |
| Idle power | 48 W |
| PoE power | NA |
|
Environmental specifications |
|
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 10% to 90%, noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
| Acoustic | Low-speed fan: 50.5 dB, High-speed fan: 66.9 dB
ISO 7779 |
|
Safety and emissions |
|
| Safety | UL 60950-1
EN 60825-1 Safety of Laser Products-Part 1 EN 60825-2 Safety of Laser Products-Part 2 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1 FDA 21 CFR Subchapter J ROHS Compliance AS/NZS 60950-1 GB 4943 EAC (EurAsian Conformity Certification) |
| Emissions | EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A EN 61000-4-11:2004 ANSI C63.4-2009 EN 61000-3-3:2008 VCCI V-3/2012.04 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-4-3:2006 EN 61000-4-4:2012; EN 61000-4-5:2006 EN 61000-4-6:2009 CISPR 22:2008 Class A EN 55022:2010 Class A EN 61000-4-29: 2000 CISPR 24:2010 EN 300 386 V1.6.1 VCCI V-3/2013.04 Class A |
| Immunity | Generic: EN 55024
ESD: EN300 386 |
| Management | IMC – Intelligent Management Center
Command-line interface Web browser SNMP manager |
