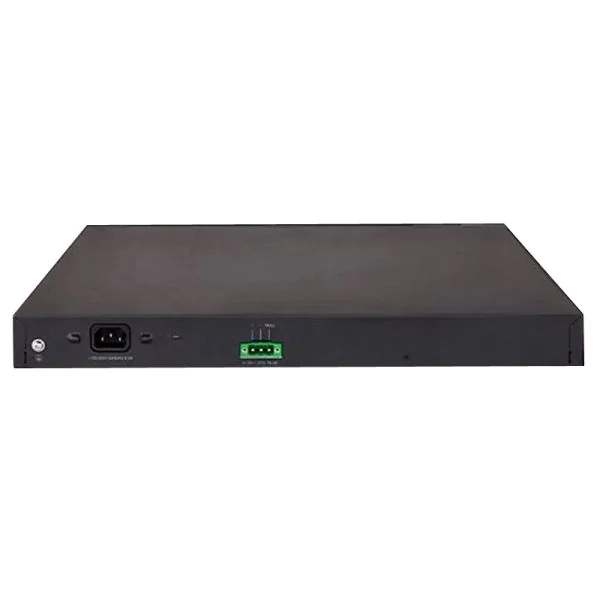

JG937A, HPE 5130 Switch, 48xGE PoE+, 4x10GE SFP+, EI
$5,793
HPE FlexNetwork 5130 EI Series switches are fully managed enterprise class Gigabit switches supporting Layer 3 static routing and RIP routing, IRF stacking up to nine units high, with four built in 10 Gigabit links. This JG937A has 48 x 10/100/1000 PoE+ enabled ports and 4 x 1GbE / 10GbE SFP+ ports for high speed 10 Gigabit or Gigabit fiber connections using optional transceivers.
| Spesifikasi | Detail |
|---|---|
| Model | JG937A |
| Brand | HPE |
| Type | HPE FlexNetwork 5130-48G-PoE+-4SFP+ (370W) EI Switch |
| I/O Ports and Slots | 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 x SFP+ fixed 1000/10000 SFP+ ports |
| Additional Ports and Slots | 1 x RJ-45 serial console port |
| Power Supplies | N/A |
| Memory and Processor | 1 GB SDRAM 512 MB flash packet buffer size: 1.5 MB |
| Reliability | MTBF (years): 48.3 |
| Mounting and Enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Management | IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager |
| Dimensions (H x W x D) | 4.36 x 44 x 36 cm (1.72 x 17.32 x 14.17 in) |
| Acoustic | Low-speed fan: 50.6 dB, High-speed fan: 54.6 dB; ISO 7779 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Relative Humidity | 10% to 90%, noncondensing |
| Nonoperating/Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Nonoperating/Storage Relative Humidity | 5% to 95%, noncondensing |
| Frequency | 50/60 Hz |
| Maximum Heat Dissipation | 160/1671 BTU/hr (168.8/1762.91 kJ/hr), for AC power. For DC power min heat dissipation is 147BTU/hr and 3037BTU/hr max |
| AC Voltage | 100 – 240 V ac |
| Current | 10 A |
| Maximum Power Rating | 490 W |
| Safety Certifications | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A |
| Device Management | RFC 1157 SNMPv1/v2c RFC 1305 NTPv3 RFC 2573 (SNMPv3 Applications) RFC 2819 (RMON groups Alarm, Event, History and Statistics only) RFC 3416 (SNMP Protocol Operations v2) HTML and telnet management Multiple Configuration Files SNMP v3 and RMON RFC support SSHv1/SSHv2 Secure Shell TACACS/TACACS+ Web UI |
| General Protocols | IEEE 802.1ad Q-in-Q IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.1X PAE IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-X IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 951 BOOTP RFC 1213 Management Information Base for Network Management of TCP/IP-based internets RFC 1305 NTPv3 RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1812 IPv4 Routing RFC 1866 Hypertext Markup Language – 2.0 RFC 2131 DHCP RFC 2236 IGMP Snooping RFC 2616 HTTP Compatibility v1.1 RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs) RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2866 RADIUS Accounting RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) RFC 3576 Ext to RADIUS (CoA only) RFC 4213 Basic IPv6 Transition Mechanisms 802.1r – GARP Proprietary Attribute Registration Protocol (GPRP) IPv6 RFC 2461 IPv6 Neighbor Discovery RFC 2463 ICMPv6 RFC 3162 RADIUS and IPv6 RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses RFC 3315 DHCPv6 (client and relay) |
| Network Management | IEEE 802.1AB Link Layer Discovery Protocol (LLDP) RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) SNMPv1/v2c/v3 |
| Security | IEEE 802.1X Port Based Network Access Control RFC 1492 TACACS+ RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2865 RADIUS (client only) RFC 2866 RADIUS Accounting Secure Sockets Layer (SSL) SSHv2 Secure Shell |
