JD377A, HPE 5500 Series Switch, 24xGE ports/EI software/No PSU
$0

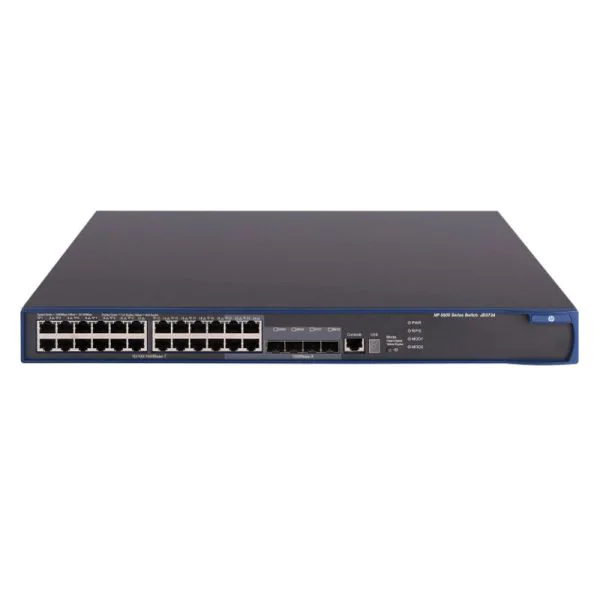

HPE FlexNetwork 5500 EI Series switches are fully managed, stackable, advanced Layer 2/3/4 enterprise class Gigabit switches. This JD377A has 24x 10/100/1000 ports including four dual personality ports for fiber connectivity.
JD377A Specification |
|
| Type | HP A5500-24G EI Switch with 2 Interface Slots |
| Ports | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);

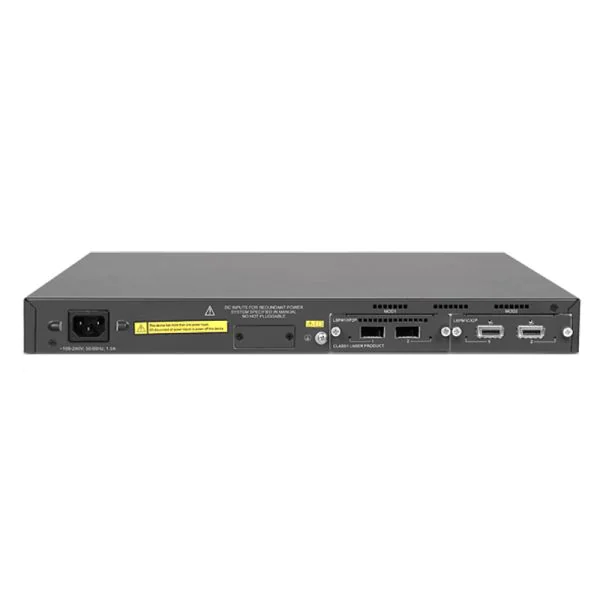

Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 24 autosensing 10/100/1000 ports |
| Dimensions | 11.81(d) x 17.32(w) x 1.72(h) in. (30 x 44 x 4.36 cm) (1U height) |
| Weight | 8.82 lb. (4 kg) |
| Memory and processor | 256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
| Mounting | Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
| Performance | 1000 Mb Latency: < 3.2 µs
10 Gbps Latency: < 2.6 µs Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
| Operating temperature | 32ºF to 113ºF (0ºC to 45ºC) |
| Operating relative humidity | 10% to 90%, noncondensing |
| Nonoperating/Storage temperature | -40ºF to 158ºF (-40ºC to 70ºC) |
| Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
| Maximum heat dissipation | 375 BTU/hr (395.63 kJ/hr) |
| Voltage | 100-240 |
| VAC Maximum power rating | 110 W |
| Frequency | 50/60 Hz |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
| Emissions | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
| Management | IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB |
