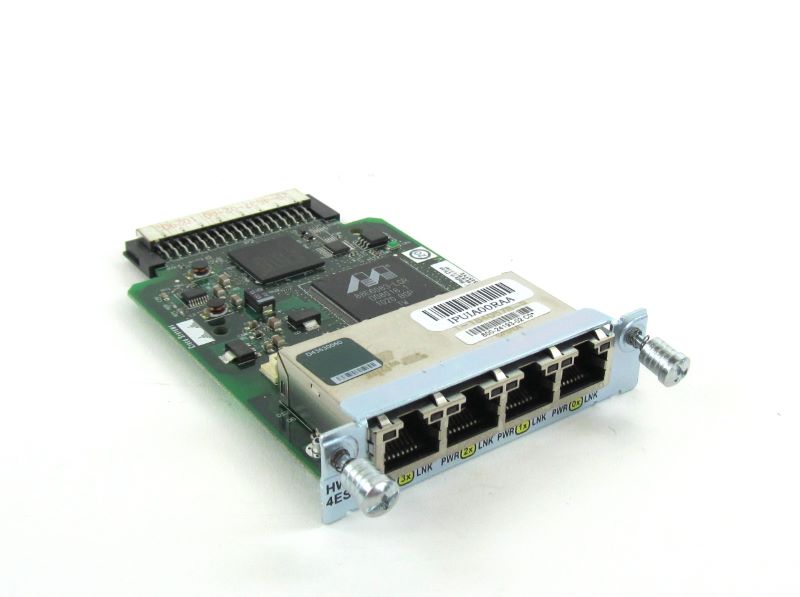

HWIC-4ESW, Cisco HWIC-4ESW, 4×10/100Mbps, Router Module, High-Speed WAN
$395
The Cisco HWIC-4ESW is a high-performance Ethernet switch interface module for Cisco integrated services routers, ideal for small and mid-size enterprise branch networks across Asia, Europe, Africa, and North America. This router module adds four 10/100 Mbps Ethernet ports to support converged data, voice, and video services while preserving WAN performance. With rich IEEE protocols, VLAN, security, and advanced manageability via SNMP, Telnet, and CLI, it helps distributors, integrators, and end users build scalable, reliable access networks.
Product Features
- ● Modules Type Four port 10/100 Ethernet switch Interface card
- ● Cisco Router High-Speed WAN Interface card
- ● Target Applications: Data, voice, and video
HWIC-4ESW-1GIG Specifications |
|
| Brand | Cisco |
| Product Name | Router Network Modules |
| Model | HWIC-4ESW |
| Ports | Four port 10/100 Ethernet switch interface card Cisco Router High-Speed WAN Interface card |
| Target Applications | Data, voice, and video |
| Compatible Flatform | Cisco 1800 (modular), Cisco 2800, and Cisco 3800 Series Integrated Services Routers: Cisco 1841 (supports HWIC-4ESW only; no PoE support), Cisco 2801, Cisco 2811, Cisco 2821, Cisco 2851, Cisco 3825, Cisco 3845; Cisco 1941, Cisco 2901, Cisco 2911, Cisco 2921, Cisco 2951, Cisco 3925, Cisco 3945 |
| Features | Data, voice, and video |
| Installation Type | HWIC-4ESW = Single-wide HWIC form factor |
| Supported Speed | Ethernet: IEEE 802.3, 10BASE-T; Fast Ethernet: IEEE 802.3u, 100BASE-TX |
| Port Configuration | Four port 10/100 Ethernet switch interface card Cisco Router High-Speed WAN Interface card |
| Form Factor | HWIC-4ESW = Single-wide HWIC form factor |
| IEEE Protocols | Ethernet: IEEE 802.3, 10BASE-T; Fast Ethernet: IEEE 802.3u, 100BASE-TX; IEEE 802.1D Spanning Tree Protocol; IEEE 802.1p CoS for traffic prioritization; IEEE 802.1Q VLAN; IEEE 802.1X security; IEEE 802.3x full duplex; IEEE 802.3af Power over Ethernet standard |
| RFC Support | RFC 2284, PPP Extensible Authentication Protocol (EAP) |
| MIBs (Part 1) | RFC 1213; IF MIB; RFC 2037 ENTITY MIB; CISCO-CDP-MIB; CISCO-IMAGE-MIB; CISCO-FLASH-MIB; OLD-CISCO-CHASSIS-MIB; CISCO-VTP-MIB; CISCO-HSRP-MIB; OLD-CISCO-TS-MIB; CISCO-ENTITY-ASSET-MIB; CISCO-ENTITY-FRU-CONTROL-MIB; BRIDGE MIB (RFC 1493) |
| MIBs (Part 2) | CISCO-VLAN-MEMBERSHIP-MIB; CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB; RMON1-MIB; PIM-MIB; CISCO-STP-EXTENSIONS-MIB; OSPF MIB (RFC 1253); IPMROUTE-MIB; CISCO-MEMORY-POOL-MIB; ETHER-LIKE-MIB (RFC 1643); CISCO-ENTITY-FRU-CONTROL-MIB.my; CISCO-RTTMON-MIB; CISCO-PROCESS-MIB; CISCO-COPS-CLIENT-MIB |
| External Redundant Power Supply | External RPS2300 optional for Cisco 2800 Series and Cisco 2900 Series routers |
| Power Requirment | Optional PoE system power supply available for all Cisco 2800 and Cisco 3800 Series routers |
| Software Support | Minimum Cisco IOS Software Release 12.3(8)T for Cisco 1841, Cisco 2800 Series, and Cisco 3800 Series routers: IP Base image; minimum Cisco IOS Software Release 15.0(1)M for Cisco 1900 Series, Cisco 2900 Series, and Cisco 3900 Series routers: IP Base License of the Universal image |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Compliance | RoHS, CE, FCC |
| Dimensions (H x W x D) / Weight | HWIC-4ESW = 3.08 x 4.74 x 0.76 in. / 79 grams (0.17 lb) |
Optional Add-ons
| Model Number | Description |
| PWR-2811-POE | Cisco AC PoE power supply for Cisco 2800 Series routers to enable inline power on HWIC-4ESW ports |
| CAB-ETHR-J45 | Cisco Category 5 UTP RJ-45 Ethernet cable for connecting Fast Ethernet endpoints to HWIC-4ESW |
| RPS2300 | Cisco RPS2300 external redundant power system for supported Cisco 2800 and 2900 Series with HWIC-4ESW |
