Dell PowerEdge T630 Tower Server
Product Details

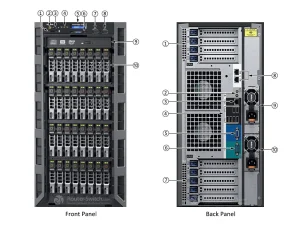

The Front and Back Panel description of Dell PowerEdge T630 Server.
Front Panel (2.5 inch hot-swap hard-drive chassis For References):
| ① | SD vFlash card slot | ⑥ | Information tag |
| ② | power button | ⑦ | iDRAC Direct port |
| ③ | NMI button and System identification button | ⑧ | USB connector |
| ④ | LCD menu buttons | ⑨ | Optical drive or tapedrive bay |
| ⑤ | LCD panel | ⑩ | 2.5 in Physical drives |
Note：This supports 3.5 inch hot-swap hard-drive chassis, which provides 4 Flex Bays and 8 3.5-inch hard drives on the front panel.
Back Panel:
| ① | PCIe expansion card slots (3) (processor 1) | ⑥ | Serial connector |
| ② | System identification connector and System identification button | ⑦ | Full-height PCIe expansion card slots (processor 2) |
| ③ | iDRAC Enterprise port | ⑧ | Ethernet connectors |
| ④ | USB port(6) | ⑨ | Power supply |
| ⑤ | Video connector | ⑩ | Power supply |
Dell T630 Server Configuration.
|
Model |
PowerEdge T630 |
|
Description |
Drive a wide range of demanding workloads with a flexible server offering peak 2-socket performance and huge internal storage capacity |
|
Processor |
Intel® Xeon® processor E5 2600 v4 product family |
|
Memory |
Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
|
PCI Slots |
Slot 1: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector) Slot 2: Full Length, Full Height, PCH – PCIe Gen2 x4 (x8 connector) Slot 3: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector) Slot 4: Half Length, Full Height, CPU2 – PCIe Gen3 x8 (x8 connector) Slot 5: Full Length, Full Height, CPU2 – PCIe Gen2 (DMI) x4 (x8 connector) Slot 6: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector) Slot 7: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector) Slot 8: Half Length, Full Height, CPU1 – PCIe Gen3 x8 (x8 connector) |
|
Network Controller |
2 X 1GbE |
|
Storage |
SAS, SATA, Near-line SAS, SSD, PCIe SSD Up to 4 optional Express Flash PCIe SSDs Up to 144TB via 18 x 8TB 3.5” HDDs |
Specification Details
Dell PowerEdge T630 Xeon E5-2650 v4 32GB 2TB SAS H330 Tower Server Specification |
|
| Product Series | Dell PowerEdge T630 Server |
| Model | Dell PowerEdge T630 Xeon E5-2650 v4 32GB 2TB SAS H330 Tower Server |
| Customizable | Intel® Xeon® E5-2650 v4, Windows Server® 2012 Standard, 32GB Memory, 2TB Hard Drive, SAS, H330 and a 3 Year ProSupport Warranty |
| Processor | Intel® Xeon® E5-2650 v4 2.2GHz,30M Cache,9.60GT/s QPI,Turbo,HT,12C/24T (105W) Max Mem 2400MHz |
| Operating System | Windows Server 2012R2 STD Ed PLUS,Factory Install,No Media,4Skt,4VMs,NO CAL |
| Memory | 32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width |
| Hard Drive | 2TB Hard Drive |
| Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
| Chipset | Intel C610 series chipset |
| Embedded Hypervisor (Optional) | Microsoft® Windows Server® 2008, with Hyper-V® VMware® ESXi Citrix XenServer |
| Storage | SAS, SATA, Near-line SAS, SSD, PCIe SSD Up to 4 optional Express Flash PCIe SSDs Up to 144TB via 18 x 8TB 3.5” HDDs |
| Drive Bays | Internal hard drive bay and hot-plug backplane: Up to 8 x 3.5” SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay Up to 18 x 3.5” SAS, SATA, Near-Line SAS,SSD drives without optional flex bay Up to 16 x 2.5” SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay Up to 32 x 2.5” SAS, SATA, Near-Line SAS,SSD drives with optional flex bay |
| Slots | Slot 1: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector) Slot 2: Full Length, Full Height, PCH – PCIe Gen2 x4 (x8 connector) Slot 3: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector) Slot 4: Half Length, Full Height, CPU2 – PCIe Gen3 x8 (x8 connector) Slot 5: Full Length, Full Height, CPU2 – PCIe Gen2 (DMI) x4 (x8 connector) Slot 6: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector) Slot 7: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector) Slot 8: Half Length, Full Height, CPU1 – PCIe Gen3 x8 (x8 connector) |
| RAID Controllers | Internal: PERC S130 PERC H330 PERC H730 PERC H730P External: PERC H830 |
| Network Controller | 2 x 1Gb |
| Communications | Broadcom® 5719 quad-port 1Gb NIC Broadcom 5720 dual-port 1Gb NIC Broadcom 57810 dual-port 10Gb DA/SFP+ CNA Broadcom 57810 dual-port 10Gb Base-T network adapter Intel® Ethernet I350 dual-port 1Gb server adapter Intel Ethernet I350 quad-port 1Gb server adapter Intel Ethernet X540 dual-port 10GBASE-T server adapter Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA Emulex LPe16000B, single-port 16Gb Fibre Channel HBA Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
| Power | Titanium efficiency 750W AC power supply Gold efficiency 1100W DC power supply Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply |
| Availability | ECC memory Hot-plug hard drives Hot-plug redundant cooling Hot-plug redundant power iDRAC8 Internal Dual SD Module Single Device Data Correction (SDDC) Spare Rank Tool-less chassis Support for high availability clustering and virtualization Proactive systems management alerts iDRAC8 with Lifecycle Controller |
| Graphics Card | Video Type :Integrated Integrated Matrox G200 with iDRAC8 Video Memory: 16 MB shared with iDRAC8 application memoryGPUs – Support for up to four optional 300W internal GPU processing accelerators |
| Chassis | Form Factor: 5U Height 443.5 mm (17.5 inch) with feet 434.5 mm (17.1 inch) without feet Width:48.2cm (18.98”) Depth:75.09cm (29.56”) Max Weight: T630 full system with 2.5” HDD: Max 2.5″x16 (6 fans) 37.57Kg/82.75lb Max 2.5″x32 (6 fans) 40.55Kg/89.32lb T630 full system with 3.5” HDD: Max 3.5″x18 (6 fans) 49.65 Kg/109.36 lb |
| Management | Dell OpenManage portfolio of systems management solutions, including: OpenManage Essentials console iDRAC8 with Lifecycle Controller |
