Dell PowerEdge T330 Tower Server, Intel Xeon E3-1240 v5/32GB
$2,975
Dell PowerEdge T330 Tower Server
Product Details
The Front and Back panel description of Dell PowerEdge T330 Server.
Front Panel (Tower mode):
| ① | Power-on indicator, power button | ⑥ | USB management port/iDRAC Direct port |
| ② | NMI button and System identification button | ⑦ | USB connector |
| ③ | LCD menu buttons | ⑧ | Optical drive or tape drives |
| ④ | LCD panel | ⑨ | Hard drives |
| ⑤ | Information tag |
Note：There is also a rack mode of this server, which provides a Video connector on the front panel.

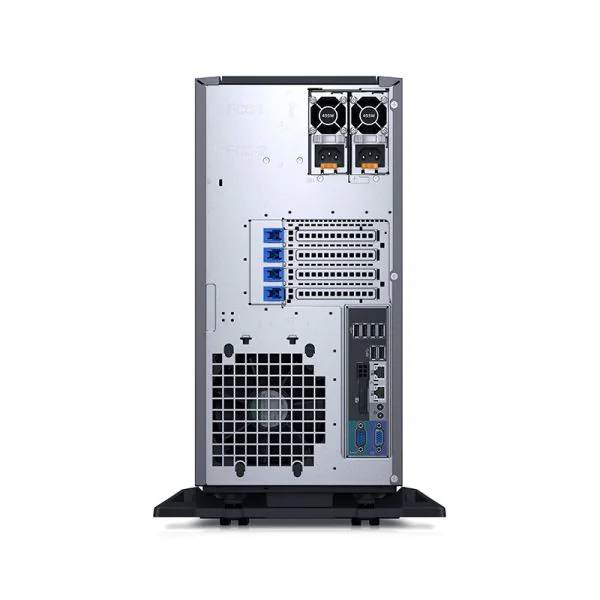

Back Panel:
| ① | Power supply units (PSU1 and PSU2) | ⑦ | USB connectors (2) |
| ② | PCIe expansion card slots (4) | ⑧ | Ethernet connectors |
| ③ | iDRAC port (optional) | ⑨ | Ethernet connectors |
| ④ | vFlash media card slot (optional) | ⑩ | System identification button |
| ⑤ | Serial connector | ⑪ | Video connector |
| ⑥ | USB connectors (4) |
Dell Server Configuration
|
Model |
|
|
Description |
Drive SMB and remote office/branch office applications faster and grow your data with a powerful and expandable 1-socket tower server. |
|
Processor |
1 processor from the following product families: Intel® Xeon® processor E3-1200 v6 product family Intel Pentium® Intel Core i3® Intel Celeron® |
|
Memory |
Architecture: Up to 2400MT/s DDR4 DIMMs Memory Type: UDIMMs Memory Module Sockets: 4 Maximum RAM: Up to 64GB |
|
PCI Slots |
4 slots: 1×8 PCIe 3.0 (x16 connector) 1×4 PCIe 3.0 (x8 connector) 1×4 PCIe 3.0 (x8 connector) 1×1 PCIe 3.0 (x1 connector) |
|
Network Controller |
2 X 1GbE |
|
Storage |
2.5” SATA 7.2K 2.5” SATA SSD’s 2.5” nearline SAS 7.2K 2.5” SAS 10K HDDs 2.5” SAS 15K HDDs 3.5” Enterprise SATA 7.2K HDDs 3.5” nearline SAS 7.2K HDDs |
Specification Details
Dell PowerEdge T330 Xeon E3-1240 v5 32GB 2TB SATA Tower Server Specification |
|
| Product Series | Dell PowerEdge T330 Server |
| Model | Dell PowerEdge T330 Xeon E3-1240 v5 32GB 2TB SATA Tower Server |
| Customizable | Intel® Xeon® E3-1240 v5, Windows Server® 2016 Essentials, 32GB Memory, 2TB Hard Drive, SATA and a 3 Year ProSupport Warranty |
| Processor | Intel® Xeon® E3-1240L v5 2.1GHz, 8M cache, 4C/8T, turbo (25W) |
| Operating System | Windows Server® 2016,Essentials Ed,Factory Inst,No MED,2SKT,NO CAL |
| Memory | 32GB (1x32GB) 2400MT/s DDR4 ECC UDIMM |
| Hard Drive | 2TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive |
| Warranty | 3 Years ProSupport with Next Business Day Onsite Service |
| Chipset | Intel C236 |
| Embedded Hypervisor (Optional) | Hypervisor Support
Microsoft Windows Server with HyperV® VMware vSphere ESXi® |
| Storage | 2.5” SATA 7.2K 2.5” SATA SSD’s 2.5” nearline SAS 7.2K 2.5” SAS 10K HDDs 2.5” SAS 15K HDDs 3.5” Enterprise SATA 7.2K HDDs 3.5” nearline SAS 7.2K HDDs |
| Drive Bays | 8 x 3.5″ bays (also supports 2.5” HDD in 3.5” hybrid drive carrier) |
| Slots | 4 slots: 1×8 PCIe 3.0 (x16 connector) 1×4 PCIe 3.0 (x8 connector) 1×4 PCIe 3.0 (x8 connector) 1×1 PCIe 3.0 (x1 connector) |
| RAID Controllers | PERC S130, PERC H330, PERC H730, PERC H830 |
| Network Controller | Broadcom® BCM5720 |
| Communications | 2 X 1GbE LOM |
| Power | 1 x 350W cabled PSU or up to 2 x 495W redundant PSUs |
| Device Access | 8 total USB: Rear USB: 2 x USB3.0 + 4 x USB 2.0 Front USB: 1 x USB 2.0 + 1 x USB 3.0 |
| Management | Systems management: IPMI 2.0 compliant Dell OpenManage Essentials Dell OpenManage Mobile Dell OpenManage Power Center Dell OpenManage Integrations: Dell OpenManage Connections: Remote management: |
| Dimensions | Height: chassis base height – 430.3 mm/17.04 in With foot – 443.3 mm/17.45 in With wheel – 471.3 mm/18.55 in Width: chassis base width – 218 mm/8.58 in Depth: front to rear wall (w/o bezel) – 542.2 mm/21.33 in |
